TERRAMASTER D5 Hybrid - 5-bay enclosure for 2 HDD + 3 M.2 NVMe SSD, USB 3.2 Gen2 10 Gbps (diskless)
Hard drive enclosures

TERRAMASTER D5 Hybrid

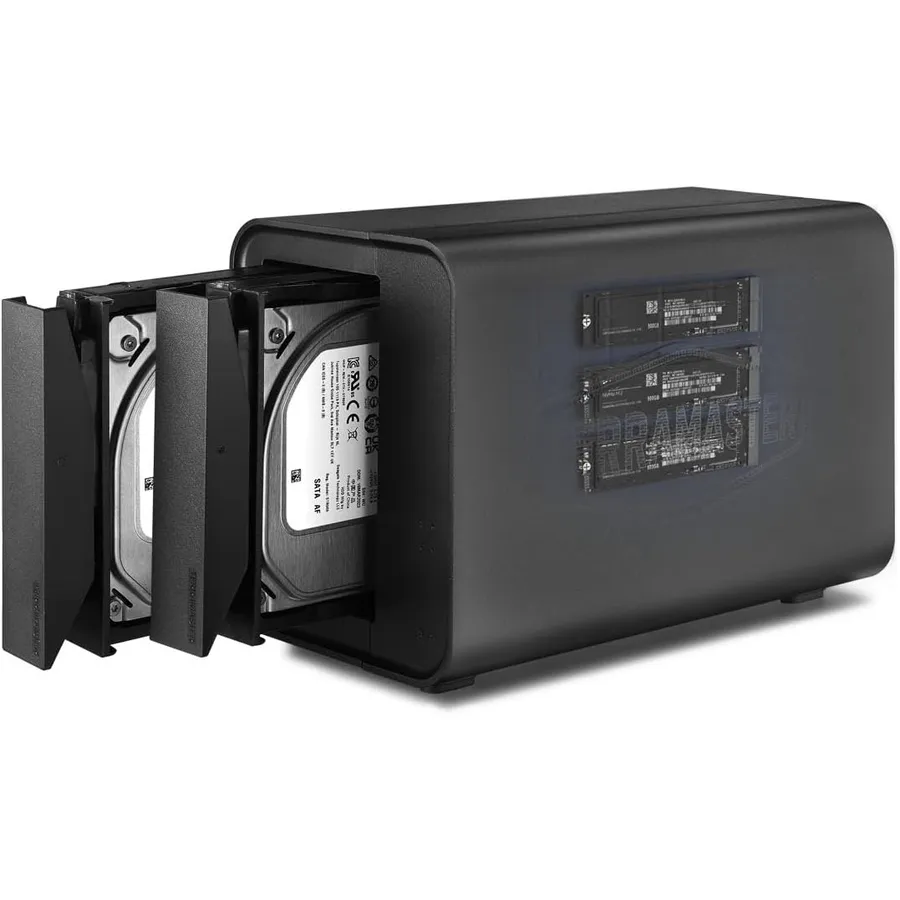

The D5 Hybrid combines two SATA drive bays with three M.2 NVMe SSD slots in a single USB enclosure. Hard drives bring capacity, NVMe SSDs bring speed.

Bays
2 x SATA + 3 x M.2 NVMe
Interface
USB 3.2 Gen2, 10 Gbps
RAID
0, 1, Single, JBOD (bays 1-2)
Drive format
3.5″ / 2.5″ SATA, M.2 2280 NVMe
  • 2 SATA bays + 3 M.2 2280 NVMe slots
  • Up to 68 TB (2 x 22 TB + 3 x 8 TB)
  • USB 3.2 Gen2, 10 Gbps
  • RAID 0, 1, Single or JBOD on bays 1 and 2
  • Tool-free trays with Push-Lock
See today’s deal →

Day to day

  1. 1Two SATA bays of up to 22 TB and three M.2 NVMe slots of up to 8 TB combine for up to 68 TB.
  2. 2USB 3.2 Gen2 reaches up to 10 Gbps, with up to 980 MB/s from an NVMe SSD.

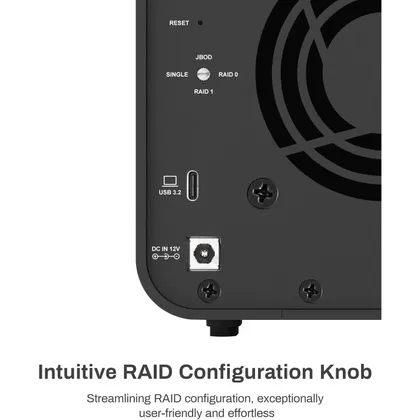

  3. 3Hard drives in bays 1 and 2 can run as RAID 0, RAID 1, Single or JBOD, while the M.2 SSDs work as individual disks.
  4. 4Two hard drives in RAID 0 reach up to 521 MB/s for large file transfers.

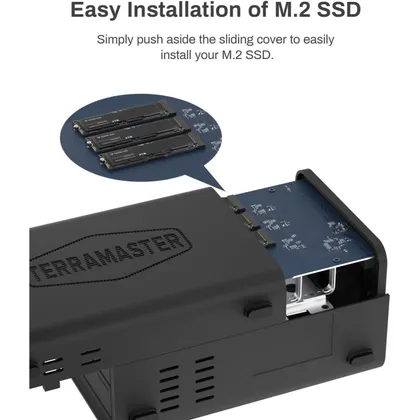

  5. 5Tool-free trays and Push-Lock make drive installation quick and secure.

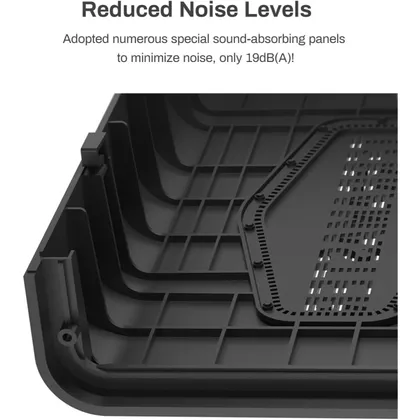

  6. 6An intelligent temperature-controlled, low-noise fan keeps drives at the right temperature.

Real-life uses

Editing plus archive

Work on current projects from NVMe SSDs and archive them on the hard drives.

Mirrored backup

RAID 1 on the two hard drives keeps a mirrored copy of important files.

Fast scratch disks

Use the NVMe SSDs as fast working drives for photo and video software.

Right for you if…

Creators who want both fast SSD storage and large hard drive capacity in one box.

Check before you buy

Supplied diskless: SATA drives and M.2 2280 NVMe SSDs are sold separately. The total USB bandwidth of 10 Gbps is shared by all drives.

Specifications

Drive bays
2 x SATA (3.5″ / 2.5″)
SSD slots
3 x M.2 2280 NVMe
Maximum capacity
68 TB (2 x 22 TB + 3 x 8 TB)
Interface
USB 3.2 Gen2 Type-C, 10 Gbps
RAID (bays 1-2)
RAID 0, RAID 1, Single, JBOD
NVMe speed
Up to 980 MB/s
Dimensions
14 x 10 x 18 cm
Drives included
No (diskless)

Frequently asked questions

Can the NVMe SSDs be in RAID?+

No. RAID applies to the two hard drives in bays 1 and 2; the M.2 SSDs work as individual disks.

What is the maximum capacity?+

Up to 68 TB: two drives of up to 22 TB plus three M.2 SSDs of up to 8 TB.

Which SSD size fits?+

M.2 2280 NVMe SSDs.
