TERRAMASTER D8 Hybrid - 8-bay enclosure for 4 HDD + 4 M.2 NVMe SSD, USB 3.2 Gen2 10 Gbps (diskless)
Hard drive enclosures

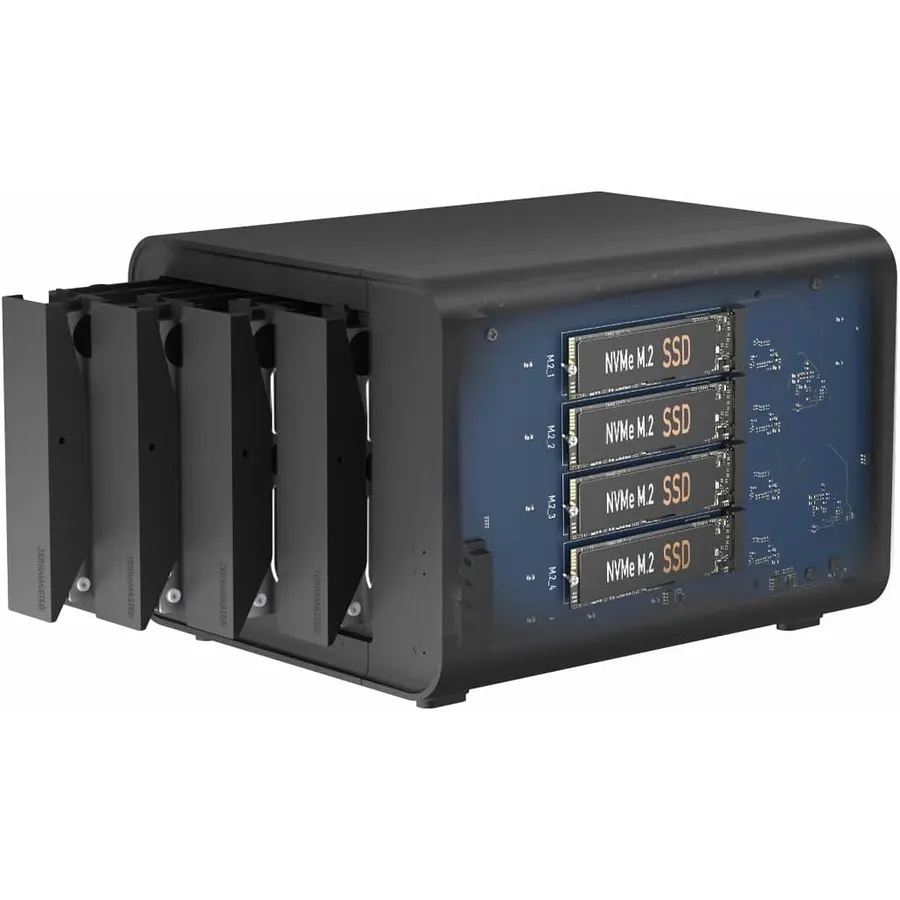

TERRAMASTER D8 Hybrid

The D8 Hybrid holds four SATA drives and four M.2 NVMe SSDs for up to 128 TB in one USB enclosure. TPC Backupper software helps you schedule backups of important data.

Bays
4 x SATA + 4 x M.2 NVMe
Interface
USB 3.2 Gen2, 10 Gbps
RAID
0, 1, Single, JBOD (bays 1-2)
Drive format
3.5″ / 2.5″ SATA, M.2 2280 NVMe
  • 4 SATA bays + 4 M.2 2280 NVMe slots
  • Up to 128 TB (4 x 24 TB + 4 x 8 TB)

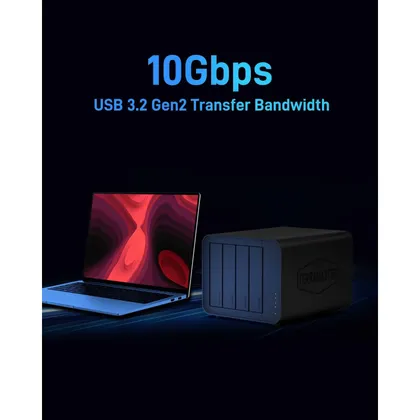

  • USB 3.2 Gen2, 10 Gbps
  • RAID 0, 1, Single or JBOD on bays 1 and 2
  • TPC Backupper software included
See today’s deal →

Day to day

  1. 1Four SATA bays of up to 24 TB and four M.2 NVMe slots of up to 8 TB provide up to 128 TB.
  2. 2USB 3.2 Gen2 at up to 10 Gbps delivers up to 980 MB/s from an NVMe SSD.

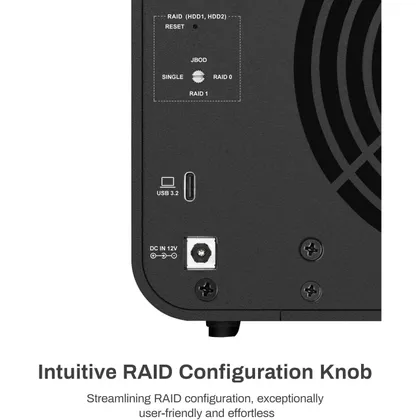

  3. 3Bays 1 and 2 support RAID 0, RAID 1, Single or JBOD; bays 3 and 4 and the M.2 SSDs work as individual disks.
  4. 4TPC Backupper software lets you schedule backups of important data.
  5. 5Tool-free trays with Push-Lock lock each drive in place as soon as it is inserted.
  6. 6An intelligent temperature-controlled, low-noise fan adapts its speed to drive temperature.

Real-life uses

Studio storage

Edit from NVMe SSDs and keep archives on four hard drives in the same enclosure.

Scheduled backups

TPC Backupper copies important folders to the enclosure on a schedule.

Mirrored critical data

RAID 1 on bays 1 and 2 keeps a mirrored copy of key files.

Right for you if…

Photographers, video makers and small studios needing high capacity plus fast SSD space.

Check before you buy

Supplied diskless: SATA drives and M.2 2280 NVMe SSDs are sold separately. RAID applies only to bays 1 and 2, and all drives share the 10 Gbps USB link.

Specifications

Drive bays
4 x SATA (3.5″ / 2.5″)
SSD slots
4 x M.2 2280 NVMe
Maximum capacity
128 TB (4 x 24 TB + 4 x 8 TB)
Interface
USB 3.2 Gen2 Type-C, 10 Gbps
RAID (bays 1-2)
RAID 0, RAID 1, Single, JBOD
NVMe speed
Up to 980 MB/s
Software
TPC Backupper
Drives included
No (diskless)

Frequently asked questions

Which bays support RAID?+

Bays 1 and 2 support RAID 0, RAID 1, Single or JBOD; the other drives work individually.

How much can it store?+

Up to 128 TB: four drives of up to 24 TB and four M.2 SSDs of up to 8 TB.

Is backup software included?+

Yes. TPC Backupper is included to schedule backups.
